Engineering ServicesLight Gauge Steel
Light Gauge Steel
(LGS) Solutions
Advanced cold-formed steel structural systems for residential, modular, and commercial construction — precision-engineered for speed, efficiency, and code compliance.
30–40%Weight Reduction vs Concrete
200+LGS Projects Delivered
6Roll Machine Platforms
25+Countries Served
LGS Engineering
Modern Structural Systems for Fast & Efficient Construction
FAECOM provides full-spectrum LGS engineering for residential apartments, affordable housing, hotels, mixed-use, and modular buildings — from feasibility through machine file generation.
AISI S100AISC 360ASCE 7IBC 2021REVITMWF StructSoftVertex-BDFrameCADHowick
Load Bearing System
Engineered LGS Load Bearing Structures

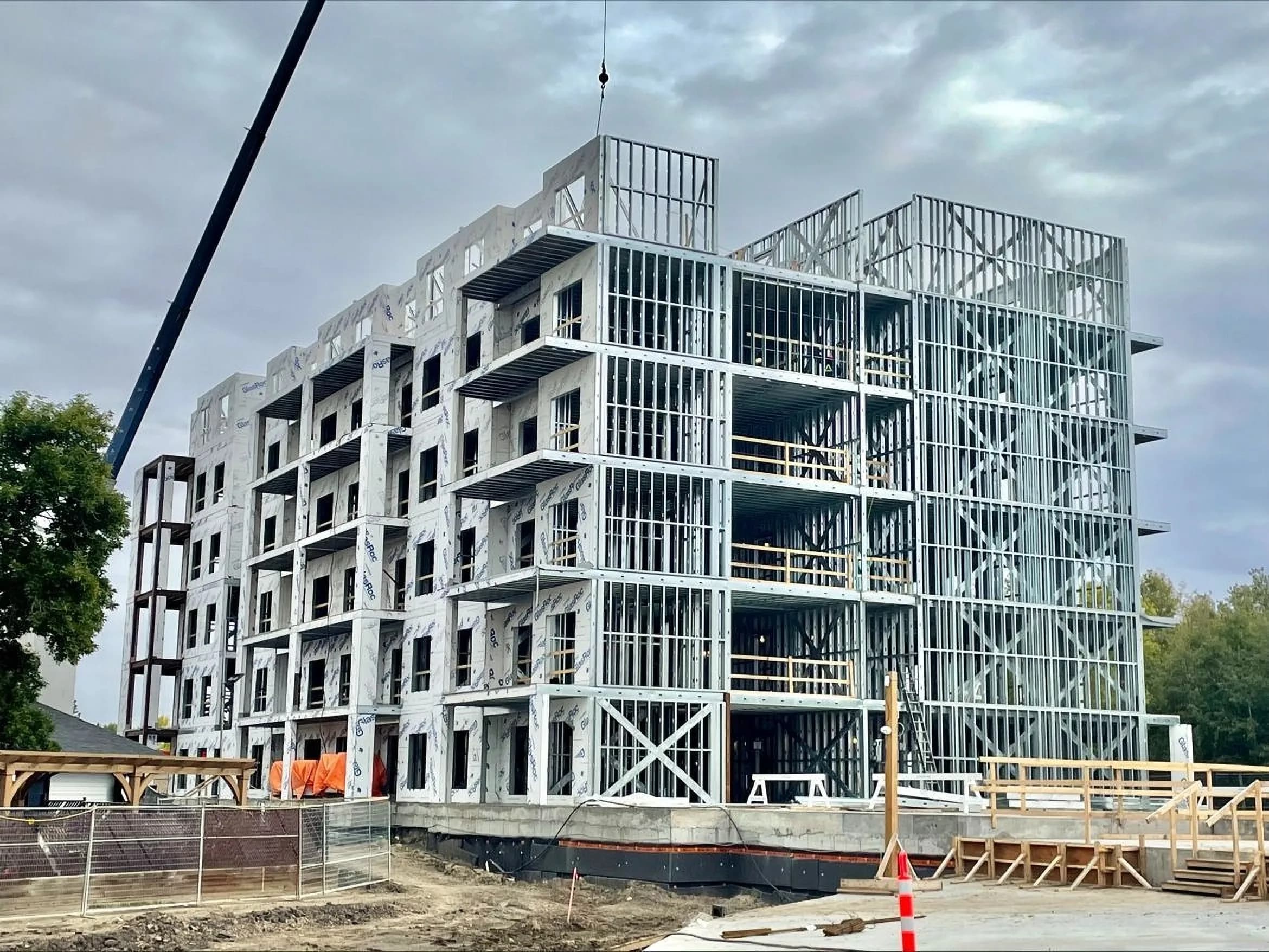

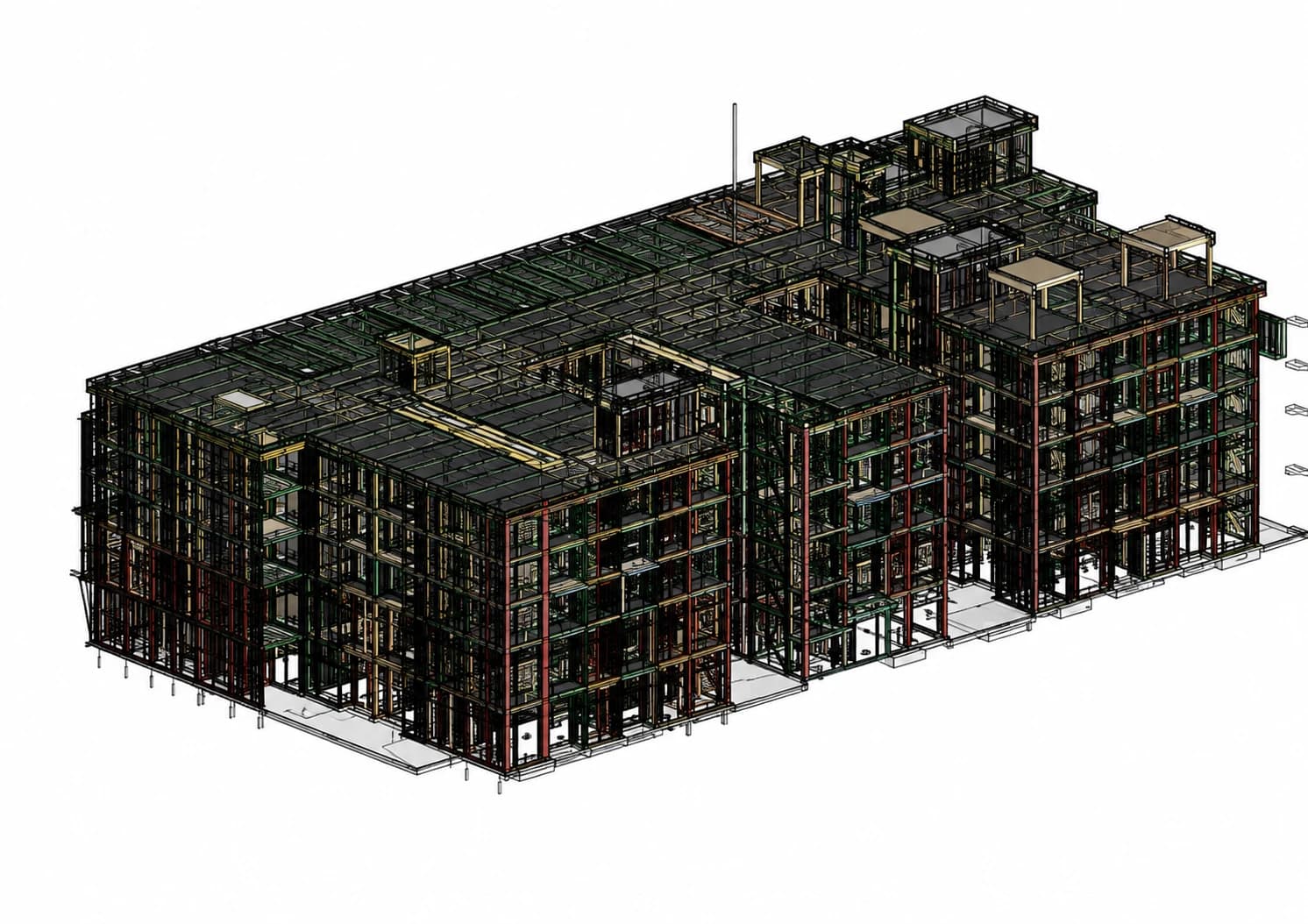

Nelson, USA — LGS Load Bearing
Load Bearing System Services
- Feasibility analysis for multistory apartments, modular structures & affordable housing.
- Design & analysis of LGS walls, floors, and trusses.
- Revit structural drawings and detailed construction documentation.
- Construction GA and shop drawings for walls, floors, and trusses.
- Machine file generation for Howick, FrameCAD & roll-formed machines.
- REVIT, MWF StructSoft, Vertex-BD, Scottsdale and FRAMECAD utilization.
Why LGS Load Bearing?
- 30–40% reduction in CFS construction cost and weight vs. traditional framing.
- Versatile for load-bearing structures, modular construction, and infill wall systems.
- Fast construction suitable for indigenous buildings and high-separation walls.
- Multistorey apartments, affordable housing, modular construction, and facade solutions.
- Compatible with all major roll-forming machine platforms — direct file output.
Infill System
Precision LGS Infill & Façade Systems
Infill System Services
- Design & analysis of LGS infill walls and façade supporting elements.
- Revit structural drawings with precise connection details.
- Construction GA and shop drawings for walls.
- Building elevation designs integrated with SFS framing.
- Material take-off for accurate project estimation.
Machine File Generation
- Direct machine file output compatible with all major roll-forming platforms.
- FrameCAD, Howick, Knudson, Scottsdale, Unbak, and FrameMac supported.
- Eliminates manual programming — files feed directly to the machine.
- Reduces fabrication errors and accelerates production timelines.

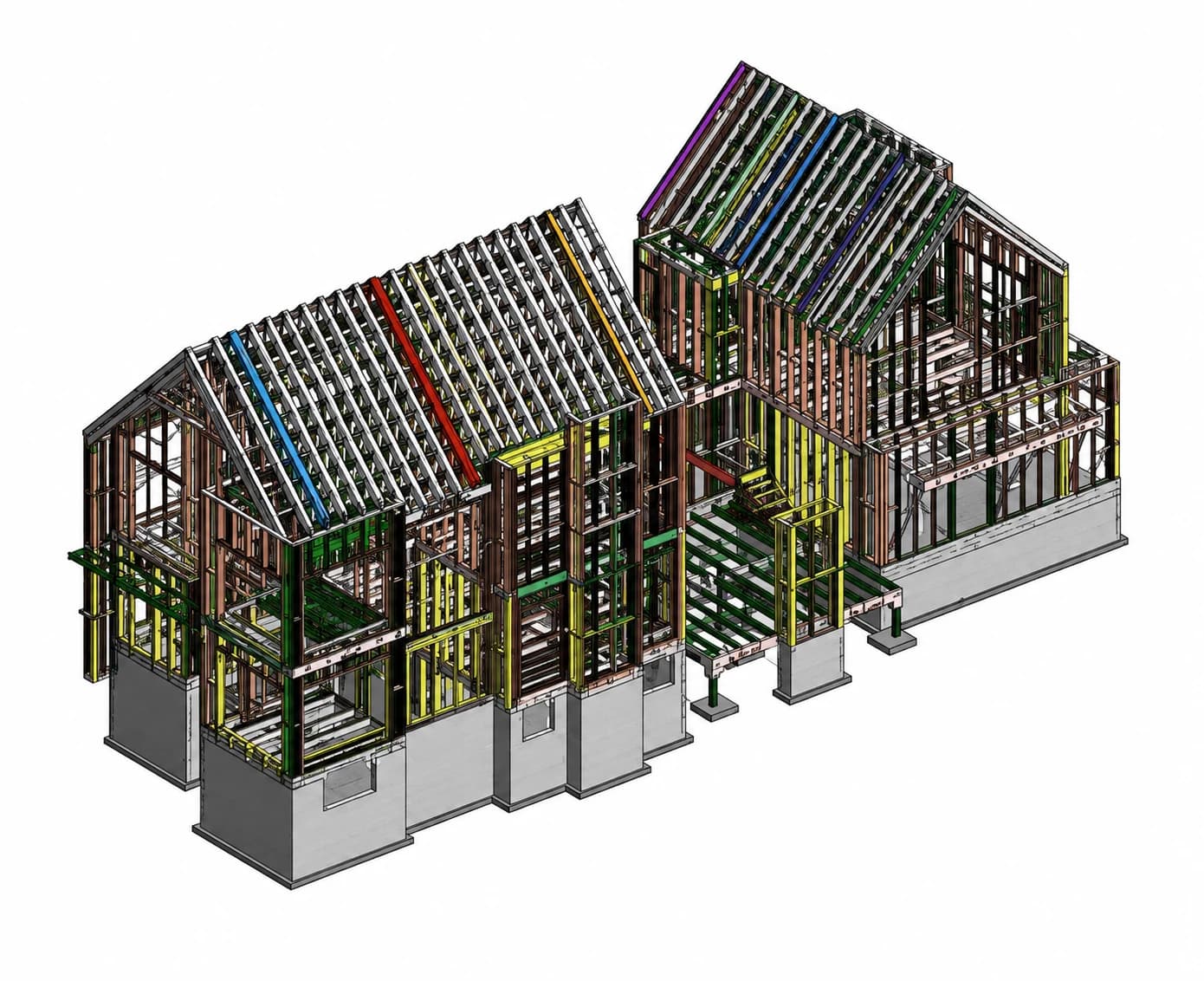

Khan House, Canada — Infill System
Machine Compatibility
Roll Forming Machine Integration
FAECOM generates machine-ready output files for all major CFS roll forming platforms — seamless handoff from design to fabrication.

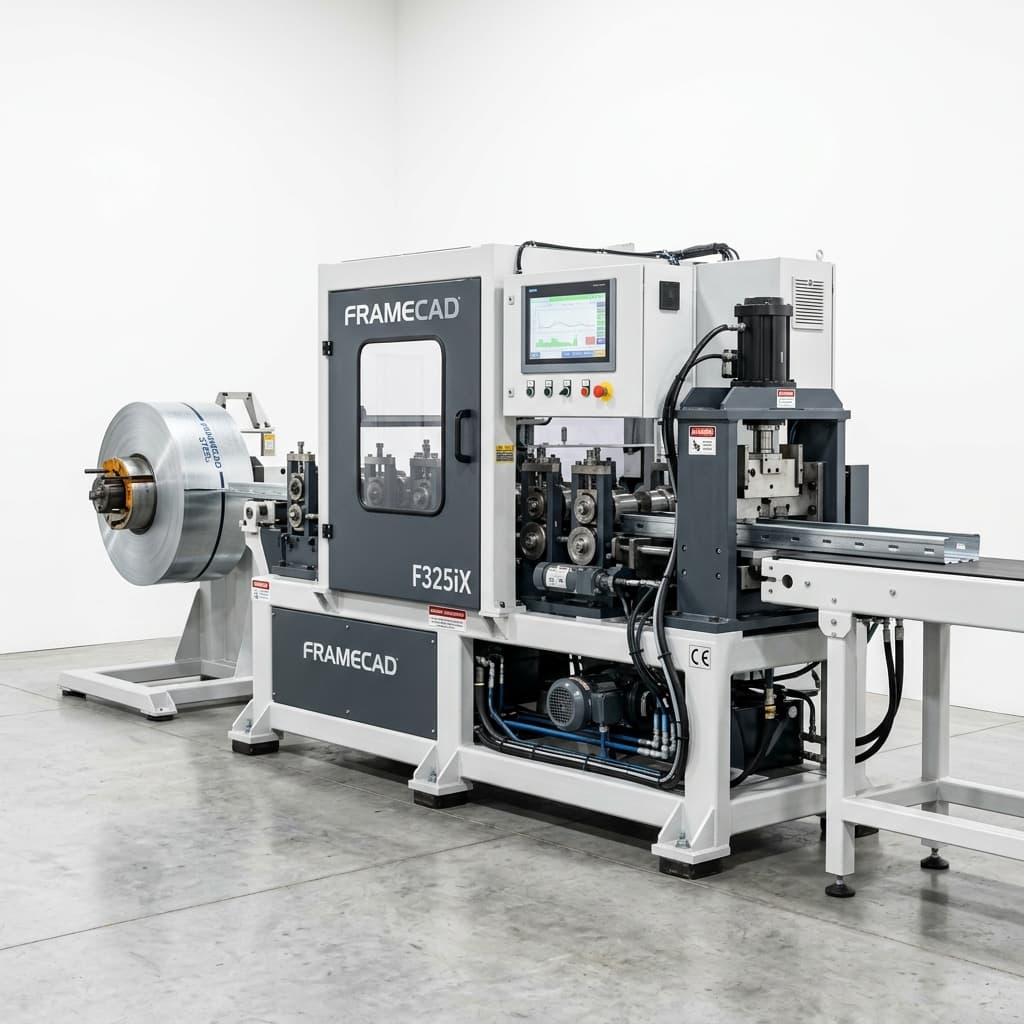

FrameCad
Direct CNC File Output
Automated roll-forming integration for studs, tracks & trusses

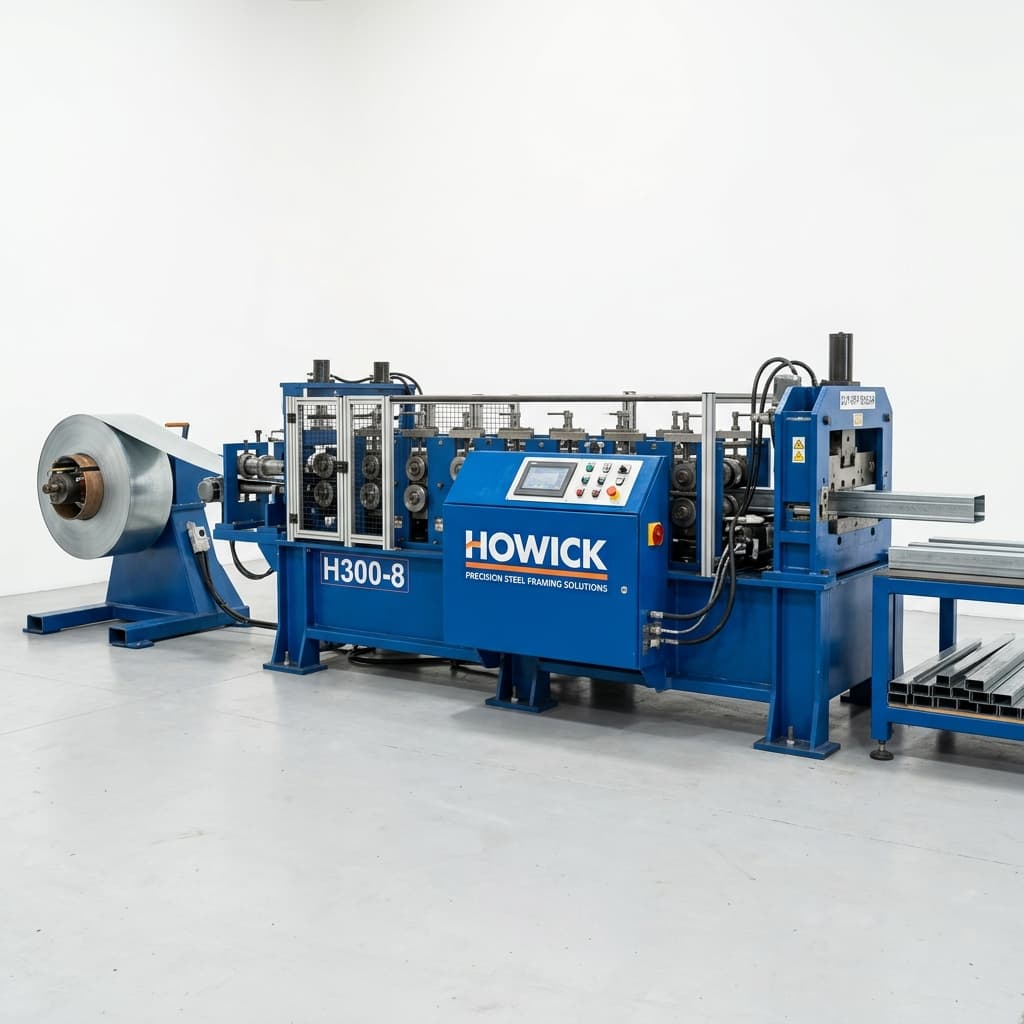

Howick
Precision Framing Technology
End-bearing studs, punched service holes & telescopic framing

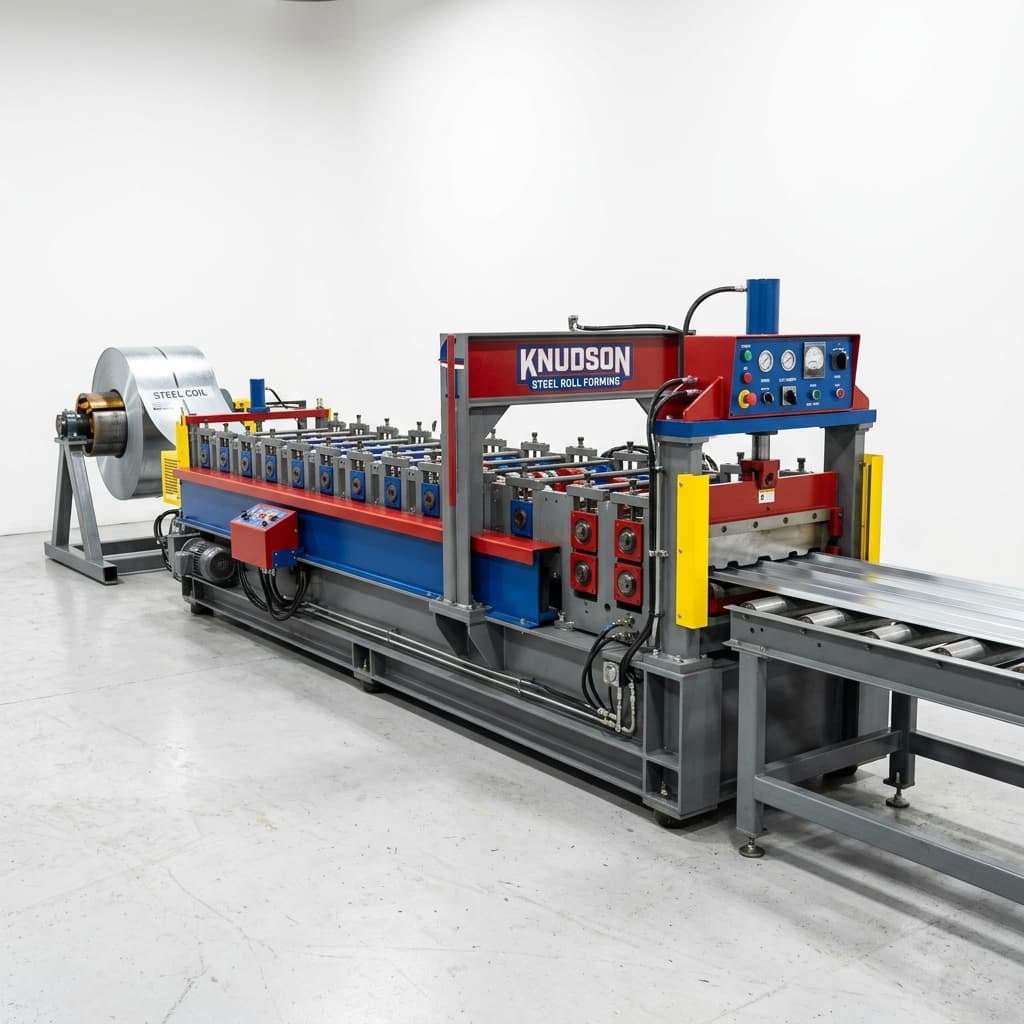

Knudson
Variable Web Framing
Multi-gauge framing outputs for residential & commercial panels

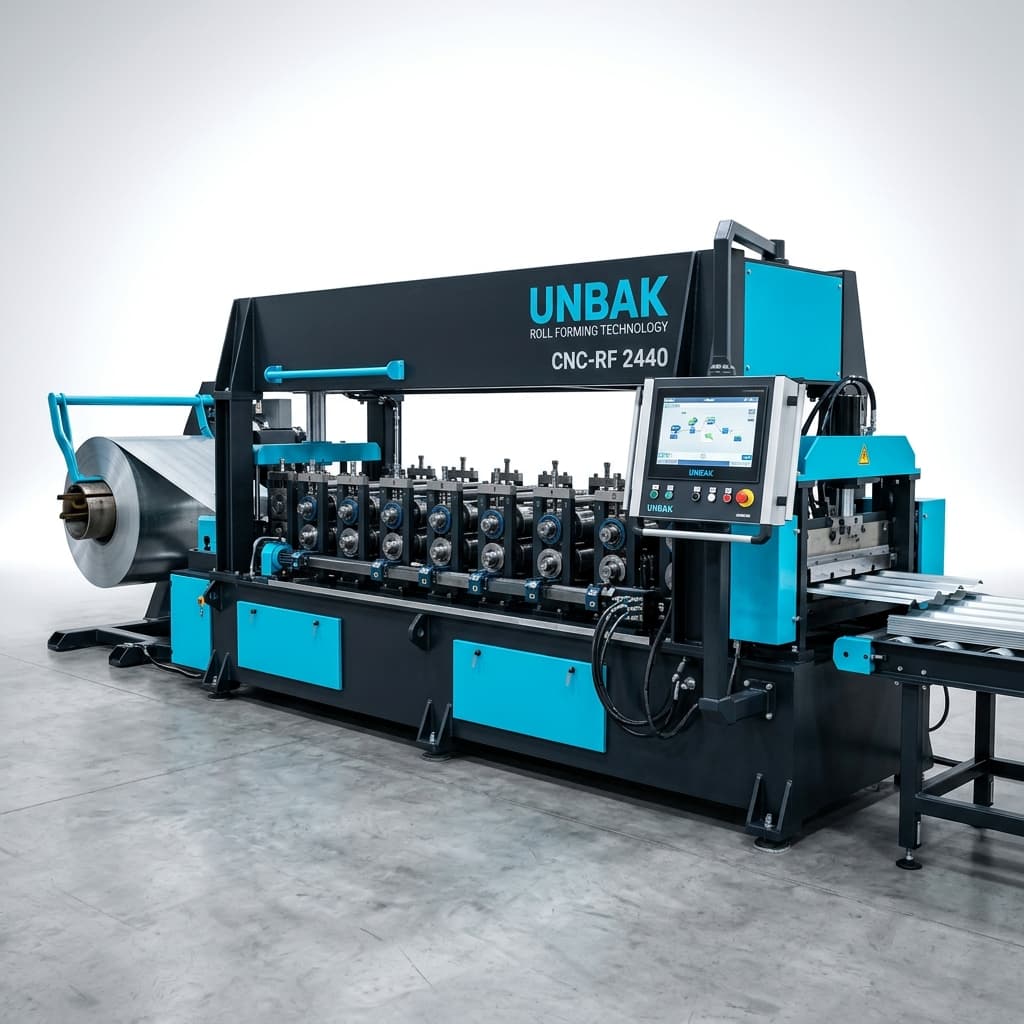

Unbak
High-Speed CFS Manufacturing
Optimized CNC machine files for rapid zero-waste fabrication

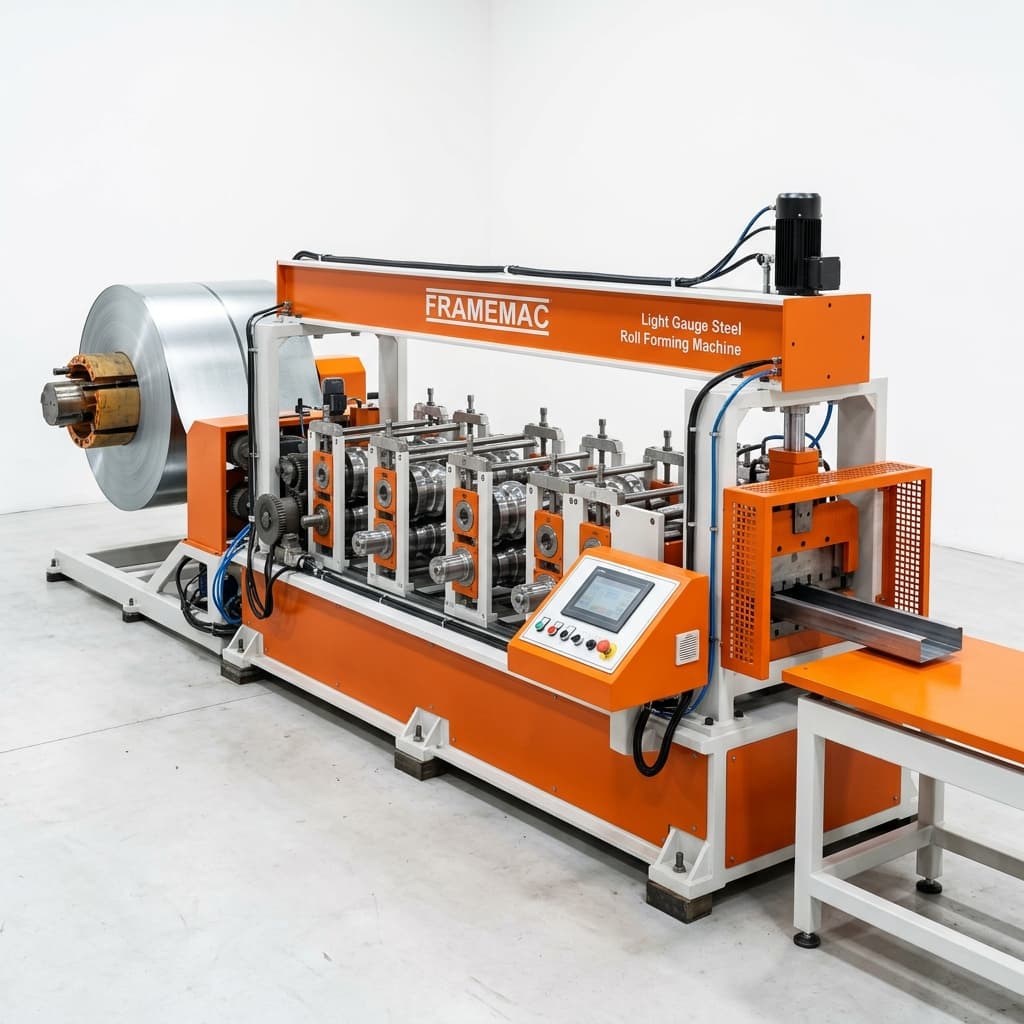

FrameMac
Multi-Profile Steel Framing
Seamless CAD-to-machine file export for advanced framing lines

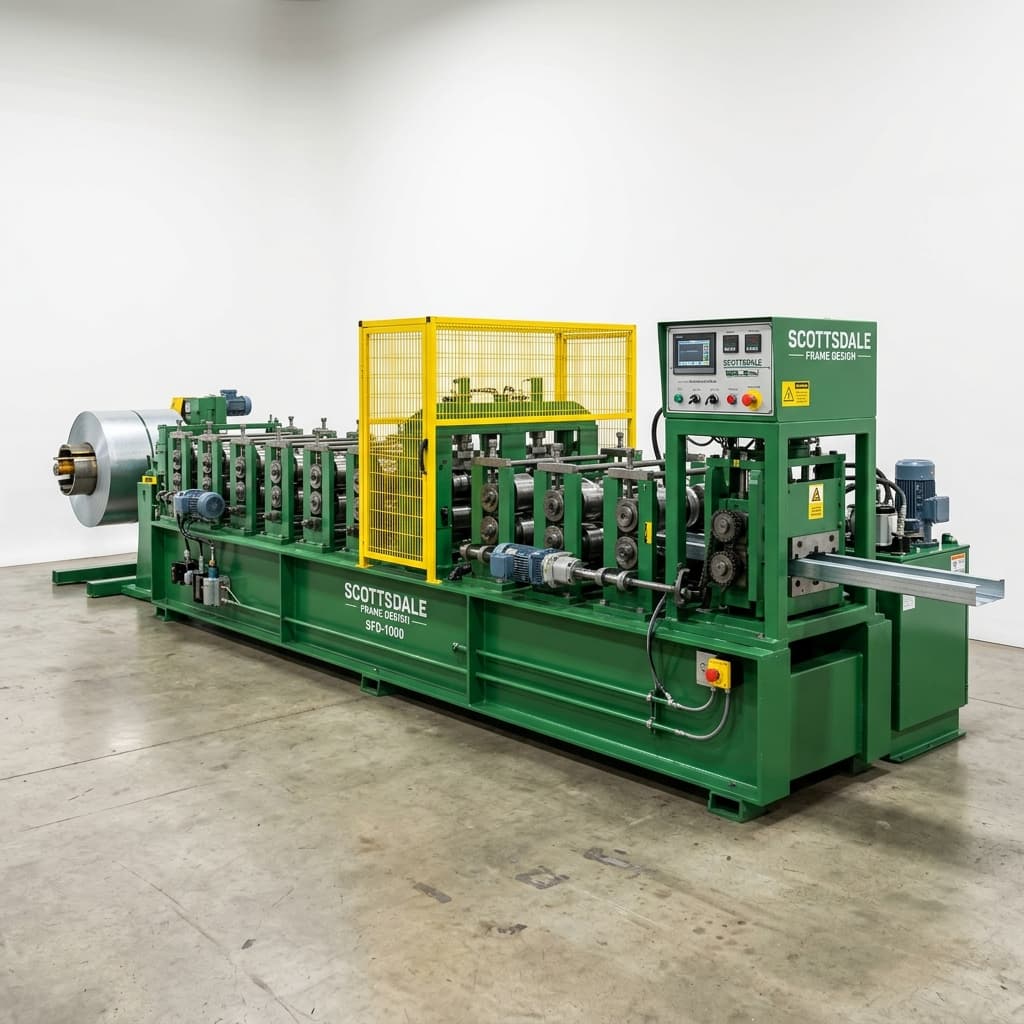

Scottsdale
Truss & Panel Automation
Automated steel framing & truss production with precision files
186 SEALED CALCULATION SHEETS
DESIGN CALCULATION REPORT
FAECOM provides comprehensive Design Calculation Reports to ensure structural stability, code compliance, and engineering efficiency.
TECHNICAL DRAWINGS & CALCULATIONS
32 ERECTION & FABRICATION DRAWINGS
STRUCTURAL DRAWINGS PACKAGE
FAECOM provides detailed Structural Drawings Packages that include essential documentation for shop fabrication and jobsite construction.
